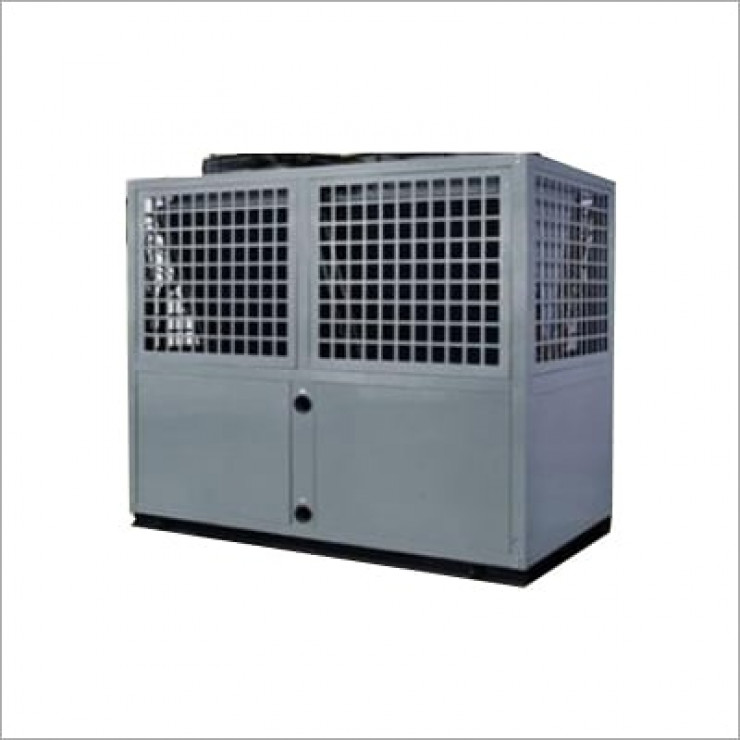

Air Source Swimming Pool Heat Pump
Air source heat pump is meant for sanitary hot water for commercial use, such as Hotels, Hospitals, Restaurants, Schools, Hostels, Resorts, etc. It is helpful to get better performance in low temperature. Heat pump can be easily connected with existing solar water system. Commercial air source heat pumps are very easy to install & maintain. Standard capacity range available up to 200kW; higher capacity available on specific request.
Advantages-
- Helpful to get better performance in low temperature
- Easy installation & maintenance
- Energy saving up to 80%
Features-
- Swimming Pool heating & cooling
- Hot water temperature range 8-40°C
- Automatic controls
- Multi-functional controller
- Efficient scroll compressor
- Environment friendly refrigerant
- High efficient shell & tube heat exchanger
- U & V shape design
| Models | SC W 210, SC W 350, SC W 500, SC W 700V, SC W 1000V, SC W 1200V |
|---|---|
| Power Supply (V/Ph/Hz) | 415/3/50 |
| Ambient Temperature (°C) | 0 to 43 |
| Rated Heating Output (kW) | 21.3 to 119 |
| Heating range (°C) | 10 to 40 |
| Input Power (kW) | 3.98 to 20.5 |
| Rated Cooling Output (kW) | 14.7 to 77 |
| Rated Input Power (kW) | 7.10 to 20.3 |
| Compressor | Copeland Scroll |
| Cooling Range (°C) | 8 – 28 |
| Noise in db(A) | <56 to <72 |
| Dimension (LWH in mm) | (1110x530x1260) to (2000x1100x2080) |
| Net Weight (kg) | 114 to 582 |
| Testing Conditions (Heating) | Inlet Water temperature 26°C, Dry bulb / Wet bulb Temperature 24°C / 19°C. |
| Testing Conditions (Cooling) | Inlet Water temperature 32°C (max.60°C), Dry bulb / Wet bulb Temperature 35°C / 24°C. |
