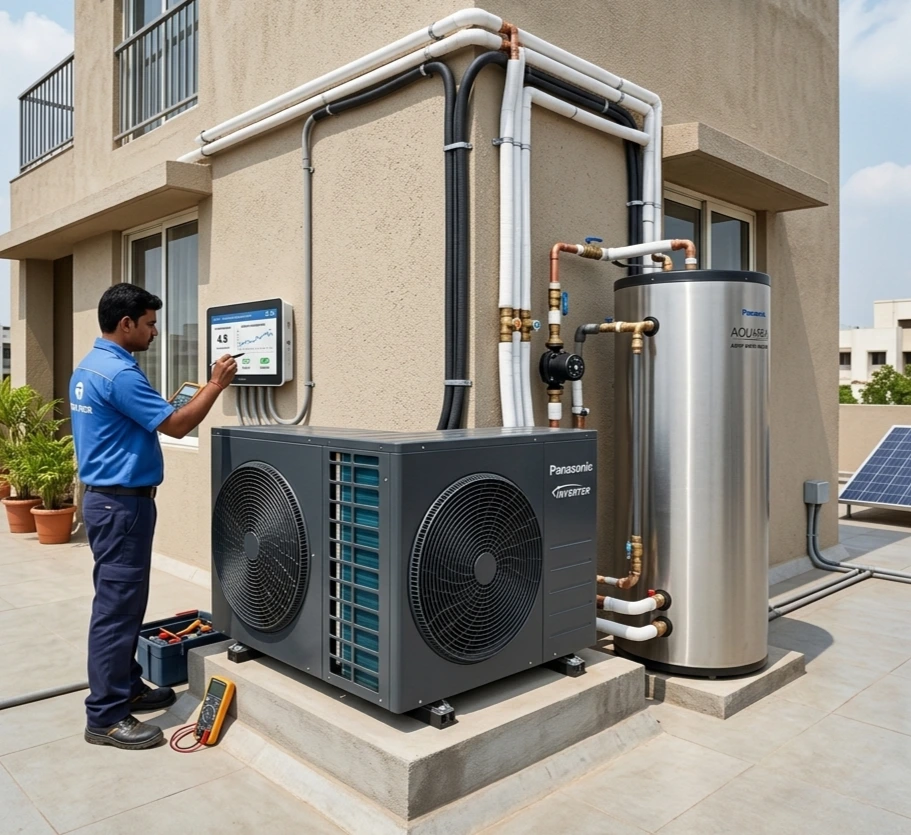

Air Source Heat Pump for Sanitary Hot Water
Air source heat pump is meant for sanitary hot water for commercial use, such as Hotels, Hospitals, Restaurants, Schools, Hostels, Resorts, etc. It is helpful to get better performance in low temperature. Heat pump can be easily connected with existing solar water system. Commercial air source heat pumps are very easy to install & maintain. Standard capacity range available up to 200kW; higher capacity available on specific request.
Advantages-
- Give better performance in low temperature
- Easy to install and maintain
- Energy saving up to 75%
Features-
- Hot water temperature 60°C
- refrigerant Automatic controls
- Touch screen multi-functional controller
- Automatic breakdown self-check
- Efficient scroll compressor
- High efficient shell & tube heat exchanger
- U, V & X shape design
| Models | SC H 195, SC H 350, SC H 500, SC H 800V, SC H 1000V, SC H 1250V, SC H 1650V |
|---|---|
| Power Supply (V/Ph/Hz) | 415/3/50 |
| Ambient Temperature (°C) | -10 to 46 |
| Rated Heat Output (kW) | 19.6 to 165 |
| Rated Hot Water Output (L/h) | 421 to 3547 |
| Input Power (kW) | 4.15 to 38.10 |
| Rated Water Outlet Temperature (°C) | 55 |
| Maximum Water Outlet Temperature (°C) | 60 |
| Compressor | Copeland Scroll |
| Heat Exchanger | Shell & tube |
| Rated Water Flow Rate (mxmxm / h) | 3.37 to 28.4 |
| Noise in db(A) | <58 to <78 |
| Dimension (LWH in mm) | (740x740x1070) to (2050x2000x1980) |
| Net Weight (kg) | 145 to 1230 |
| Testing Conditions (Heating) | Inlet Water 15°C / Outlet Water 55°C (max.60°C) Dry bulb / Wet bulb Temperature 20°C / 15°C. |
